Robot Mechanical Arm for Arduino Robot DIY Kit For UNO/ESP32 Programmable DIY Kit For UNO/ESP32 Programmable
Welcome to Byte robot Tech Store
We are a leading enterprise in the robot industry, focusing on technology, technical skills, education, and educational development. Our range of programmable intelligent products includes robots, robot eyes, robot hands, robotic arms, smart cars, hovercrafts, claws, industrial products, and more. These products not only provide learning opportunities for children and engineers but also ignite their interest in education. We are soon launching more new products in technology, education, and health, suitable for children's entertainment and adult learning. When you purchase our programming products, we will also provide relevant technical documents to assist you in learning and using the products more effectively.
By the way, if you like our store, Please add our store to your Favorite Stores, You can get our New arrival and Discount information in time.

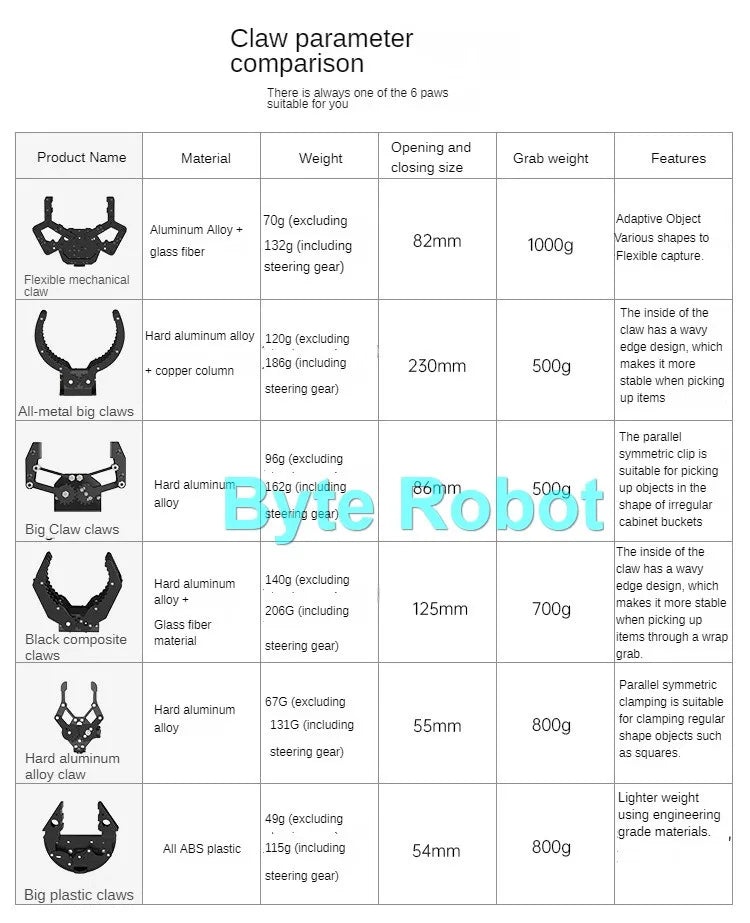

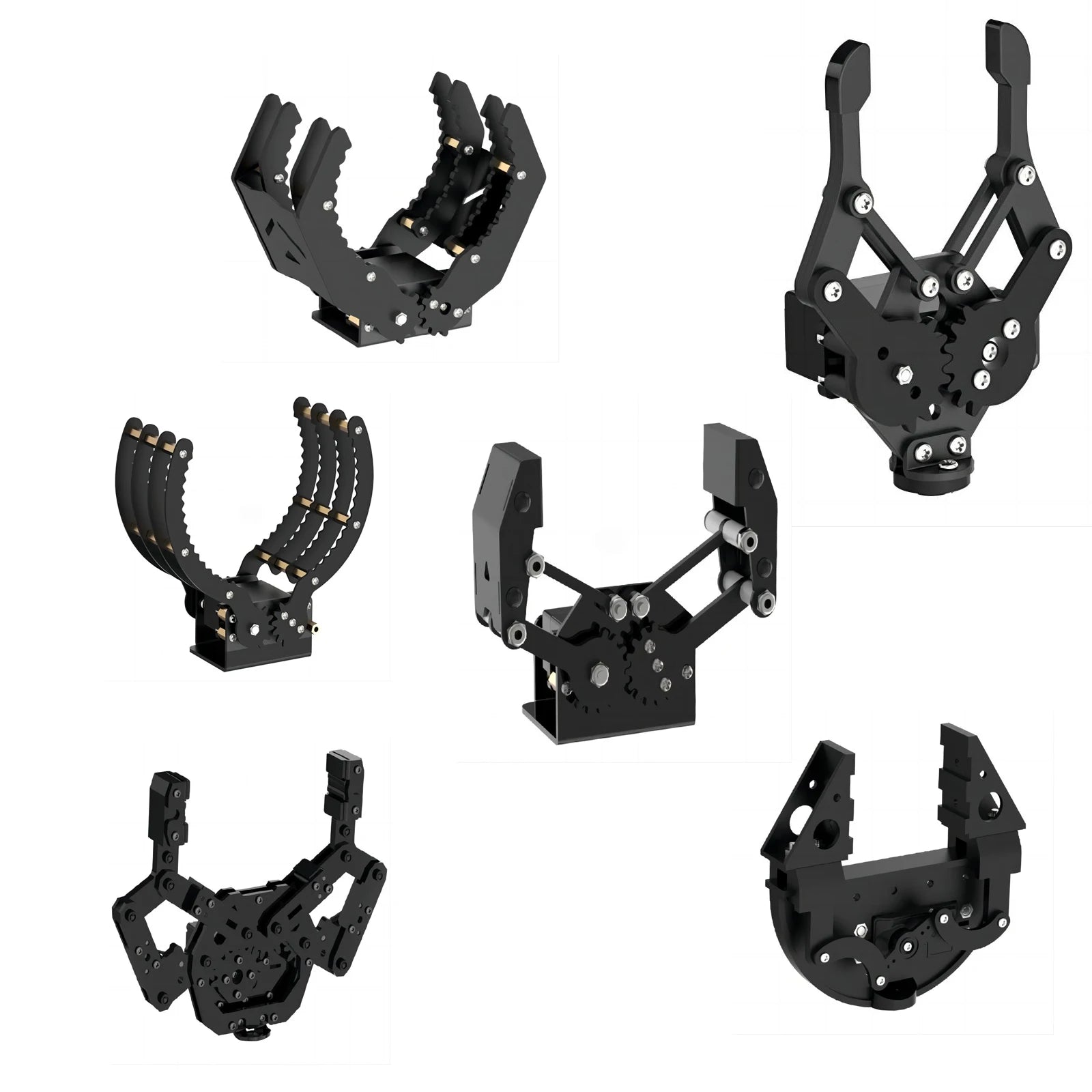

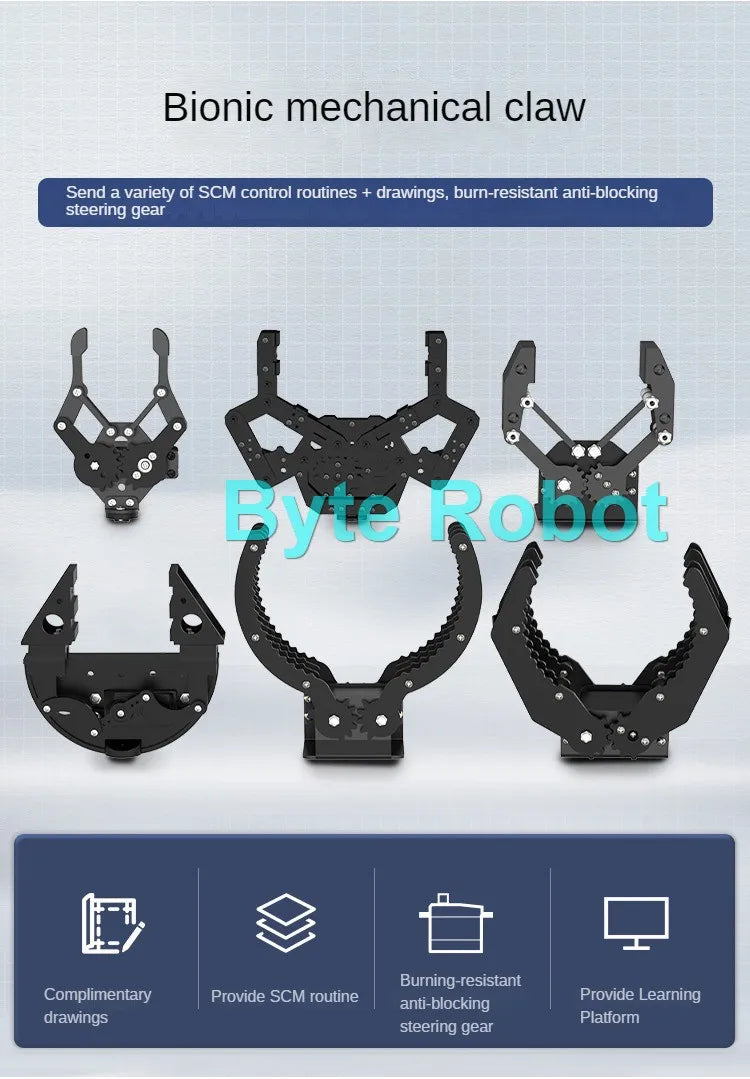

Title: All kinds of mechanical claws Robot mechanical arm steering gear high torque diy gripper
flexible metal mechanical claws

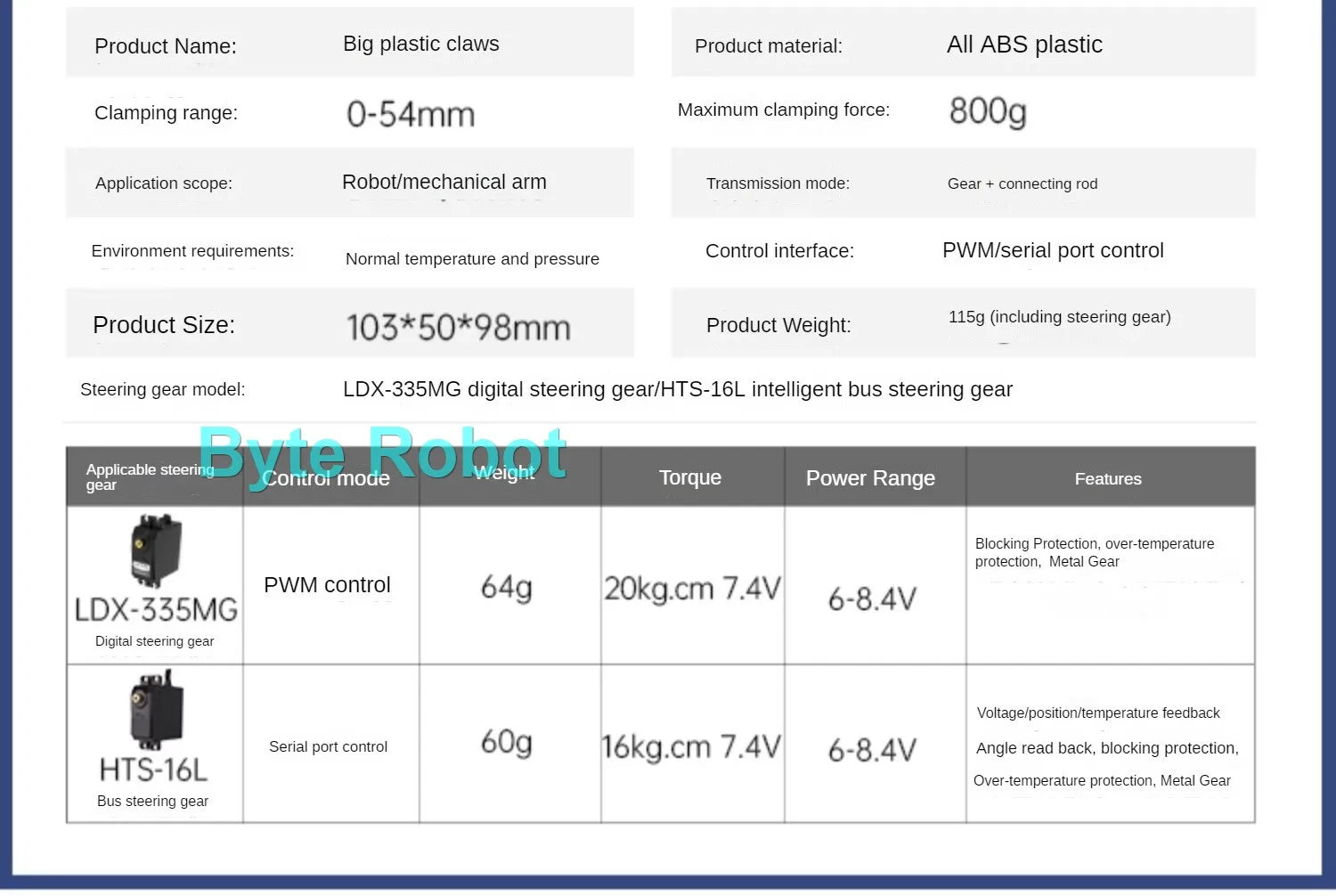

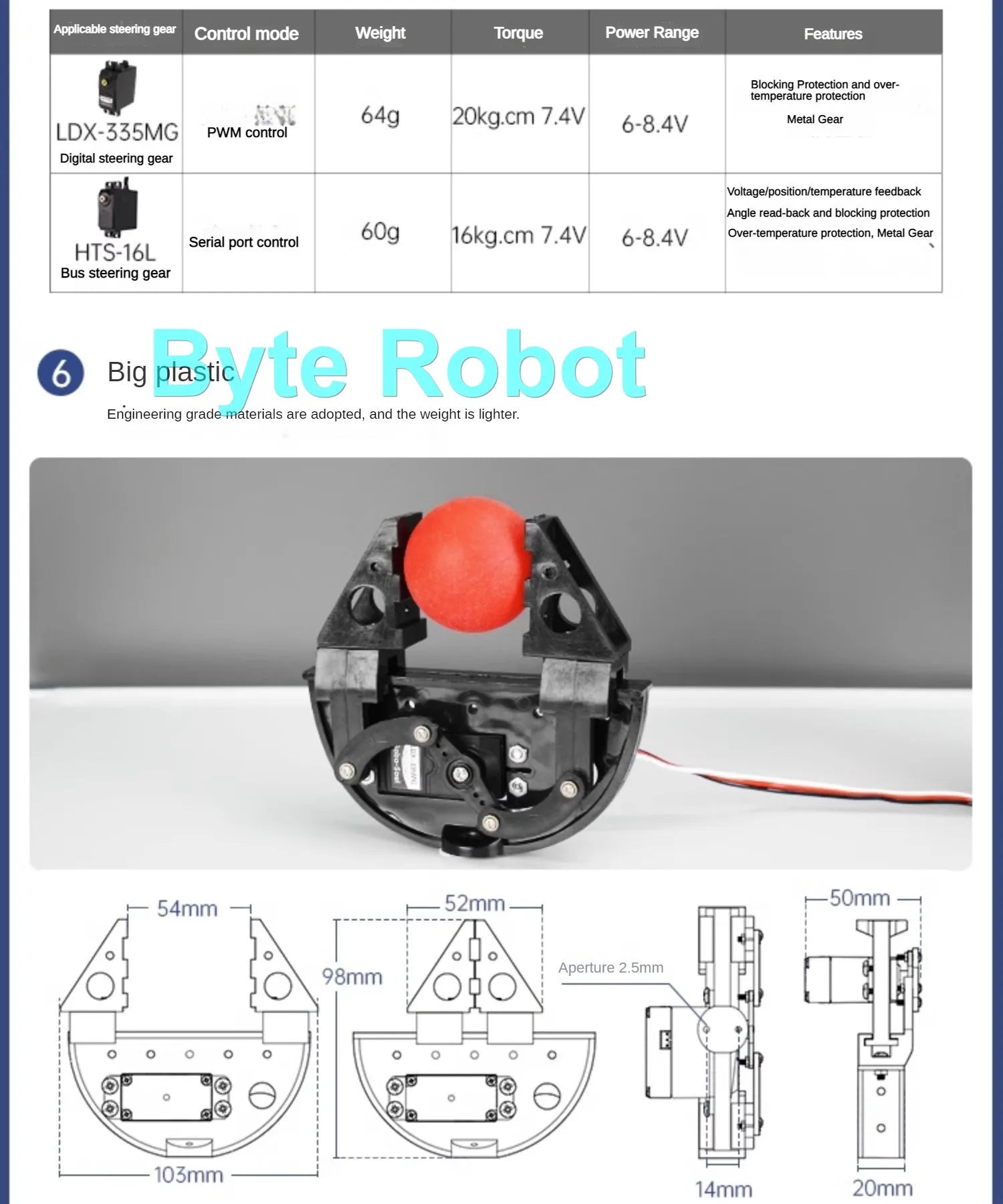

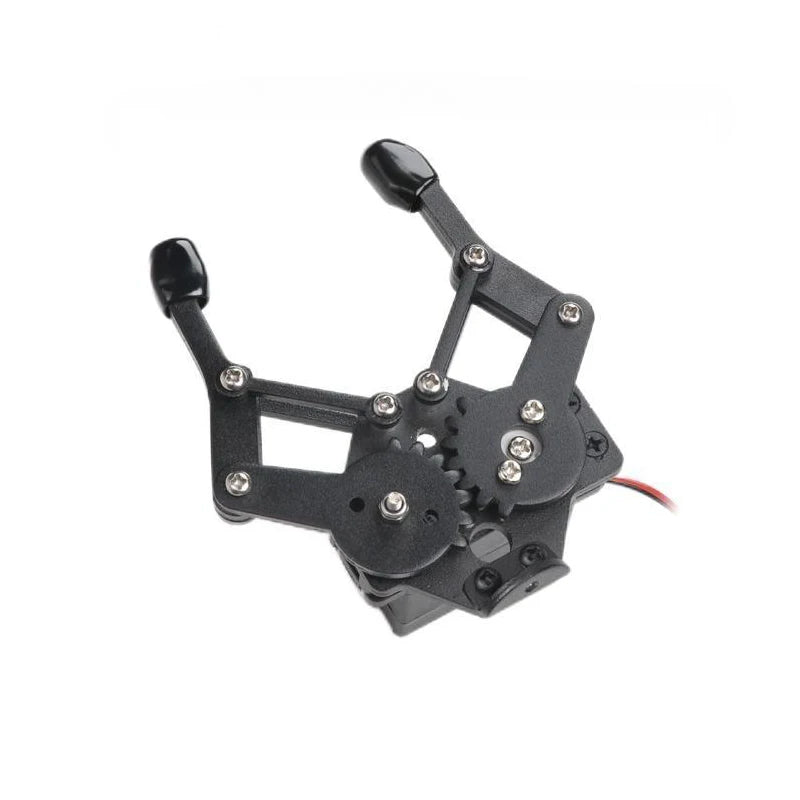

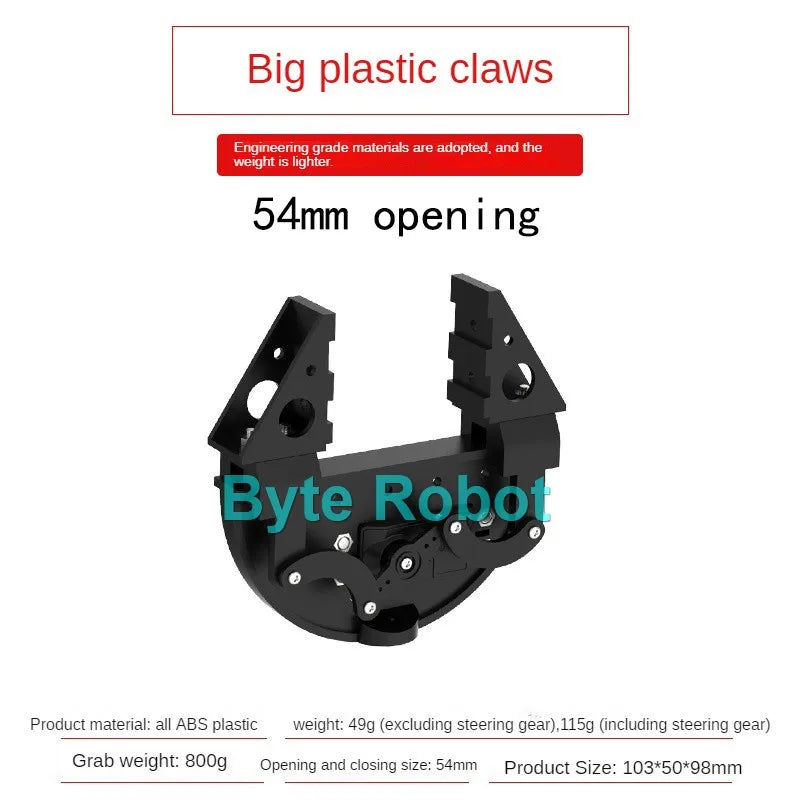

Claw 1: Plastic claw
Clamping range :0-54mm
Application: Robot/robot arm
Operating environment requirements: normal temperature and pressure
Product size :103*50*98mm
Material: All ABS plastic
Maximum clamping force :800g
Transmission mode: gear + connecting rod
Control interface :PWM/ serial port control

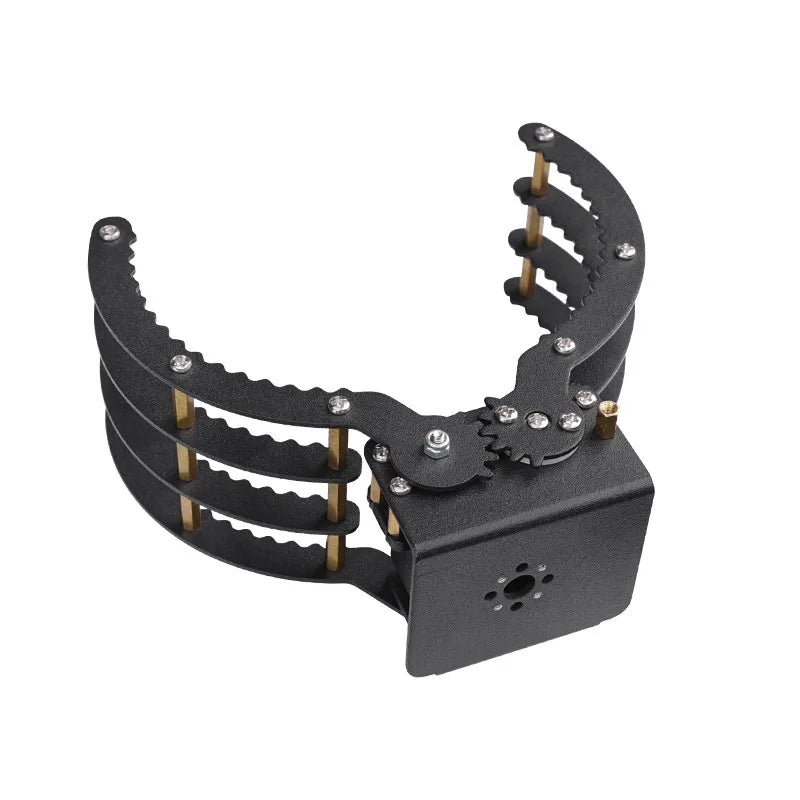

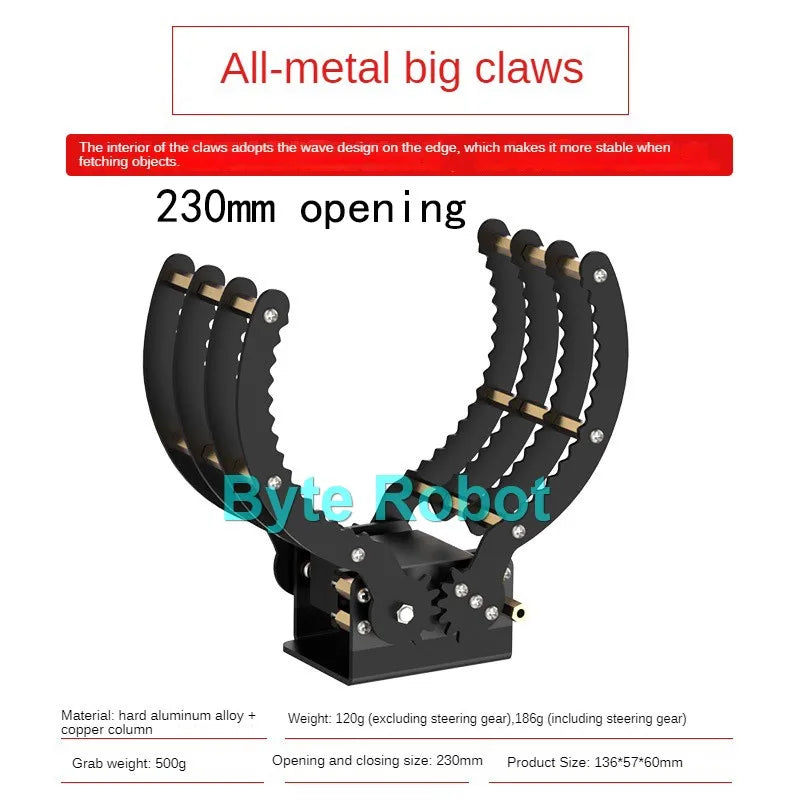

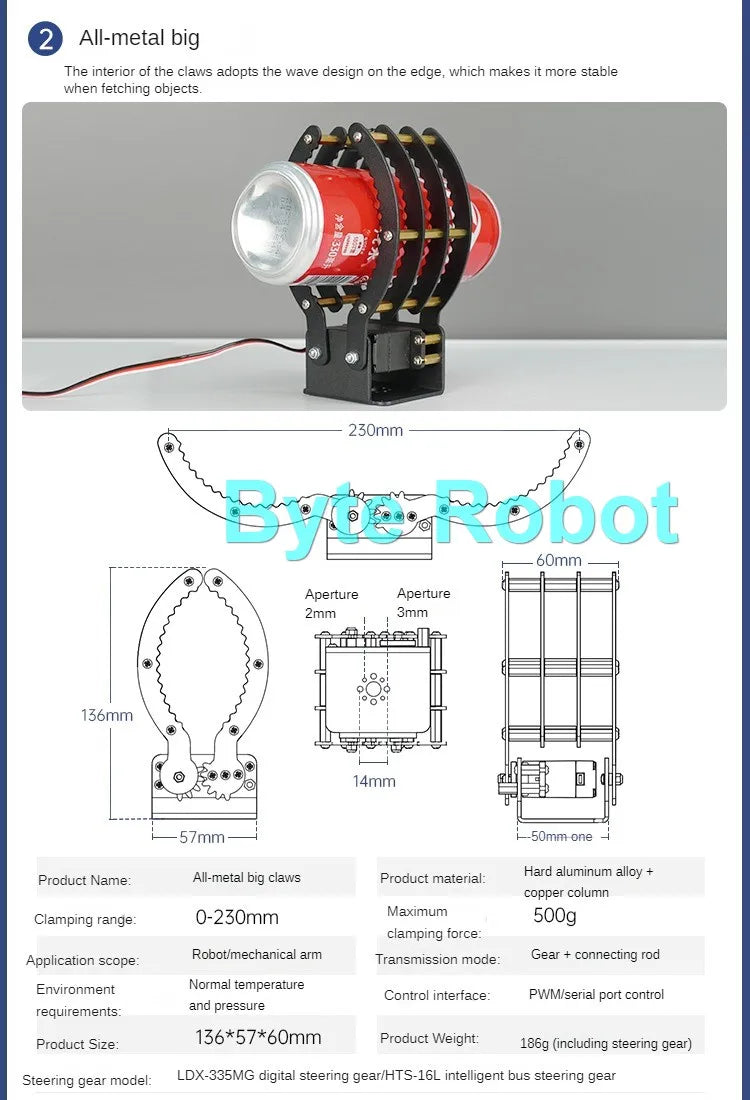

Claw 2 : All metal claws
Clamping range: 0-230mm
Application: Robot/robot arm
Operating environment requirements: normal temperature and pressure
Product size :136*57*60mm
Material: hard aluminum alloy + copper column
Maximum clamping force :500g
Control interface: PWM/ serial port control

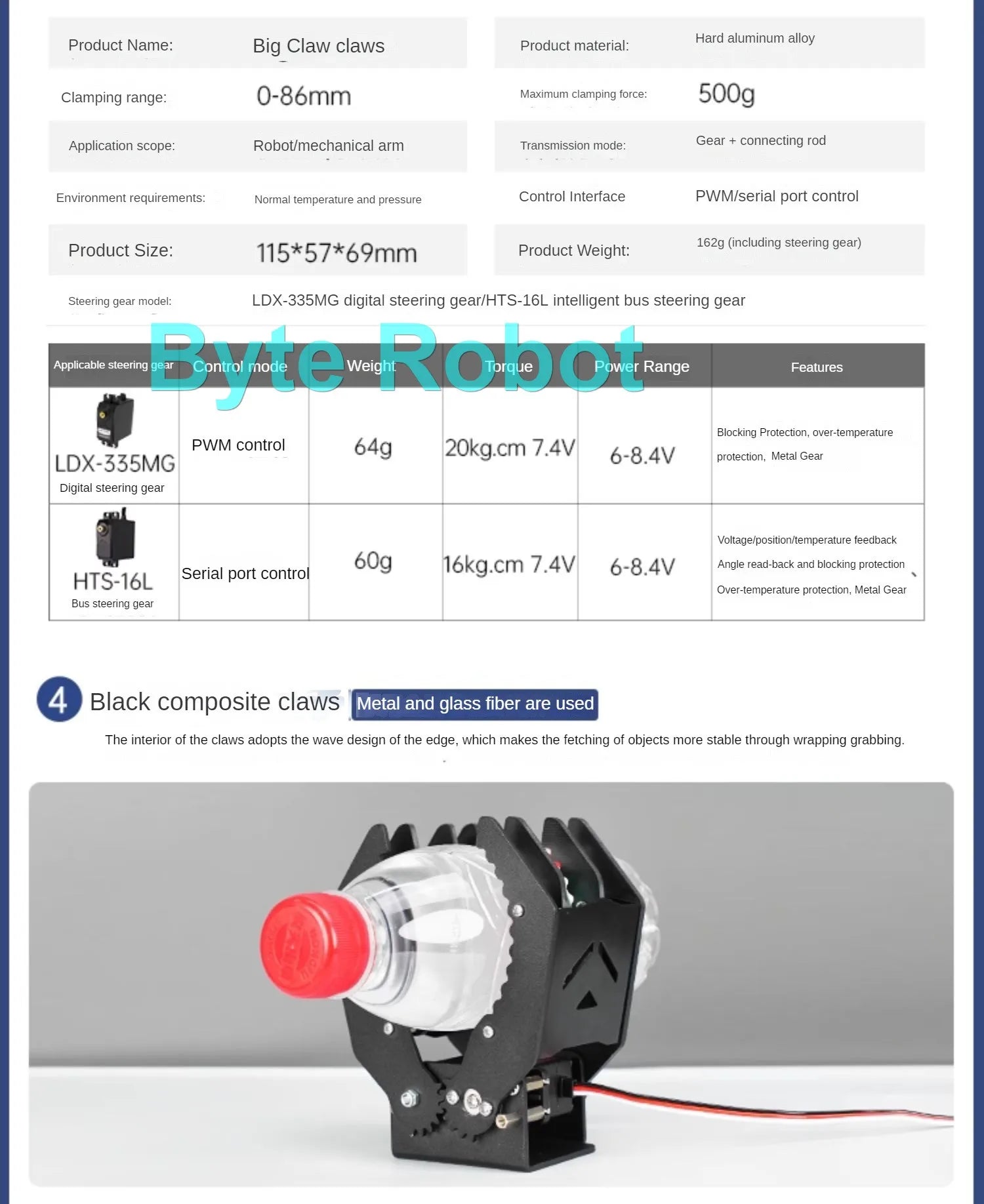

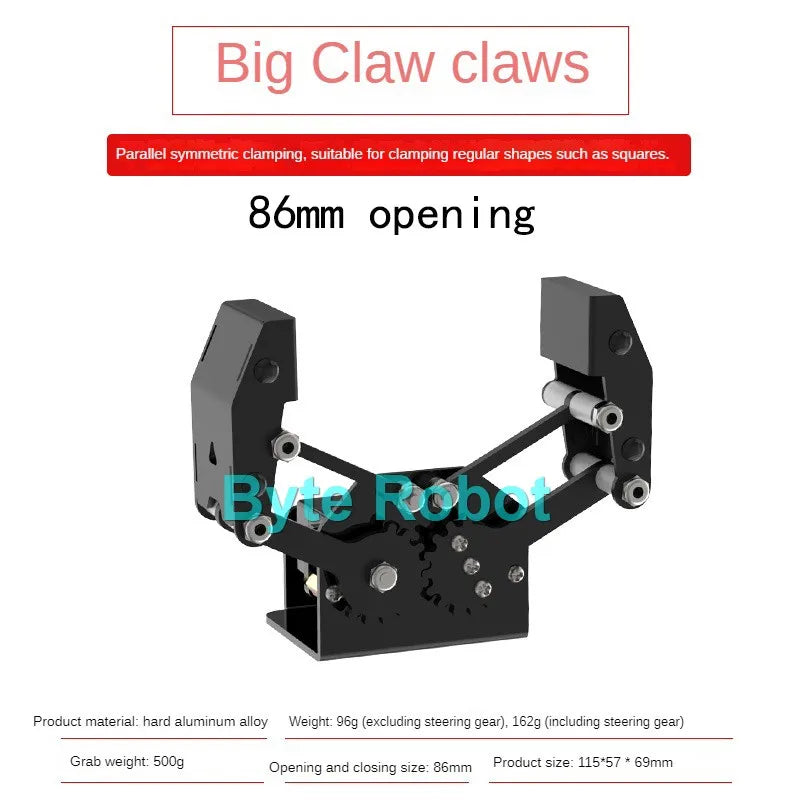

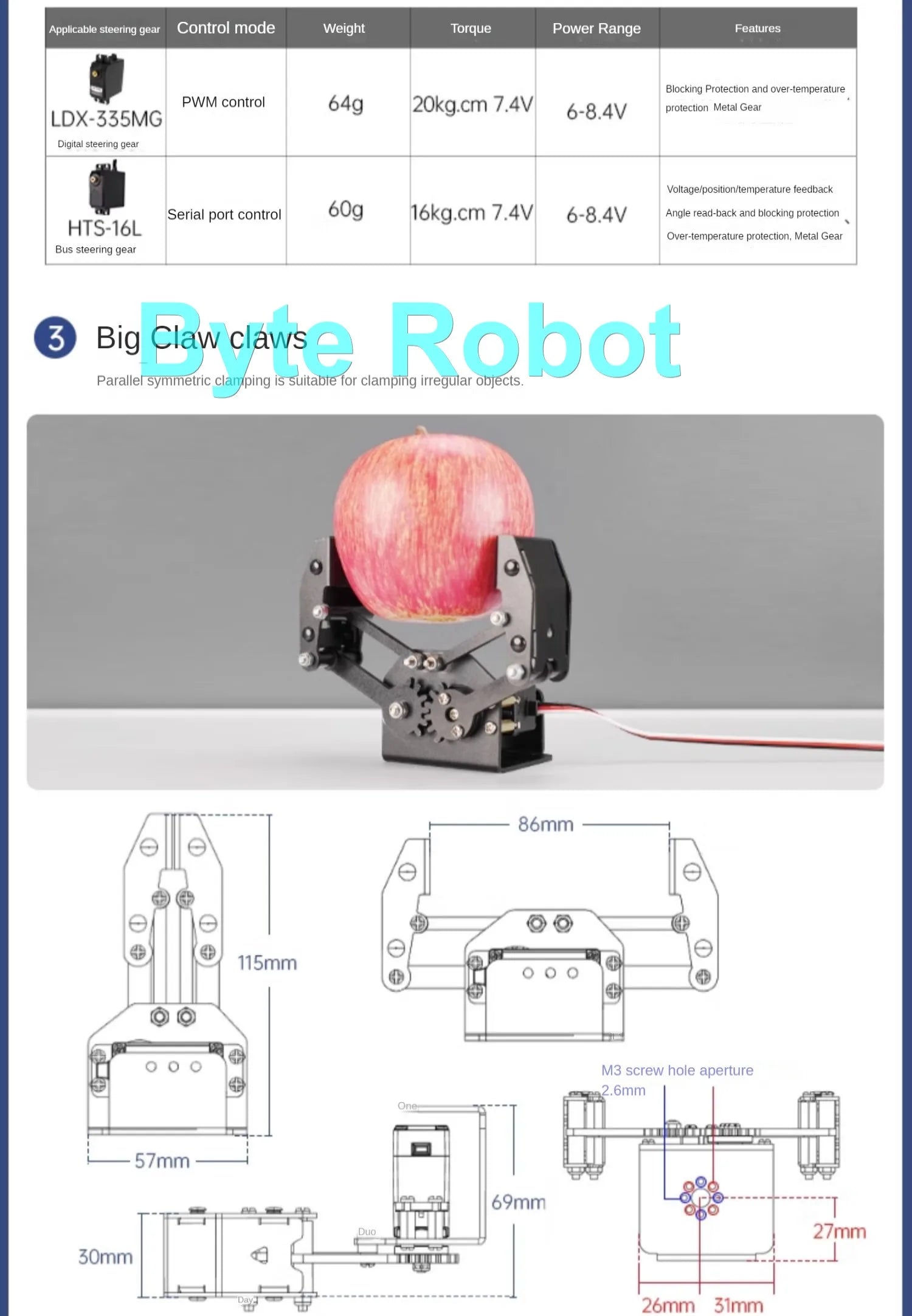

Claw 3 :Big claw
Clamping range :0-86mm
Application: Robot/robot arm
Operating environment requirements: normal temperature and pressure
Product size :115*57*69mm
Material: hard aluminum alloy
Maximum clamping force :500g
Transmission mode: gear + connecting rod
Control interface :PWM/ serial port control

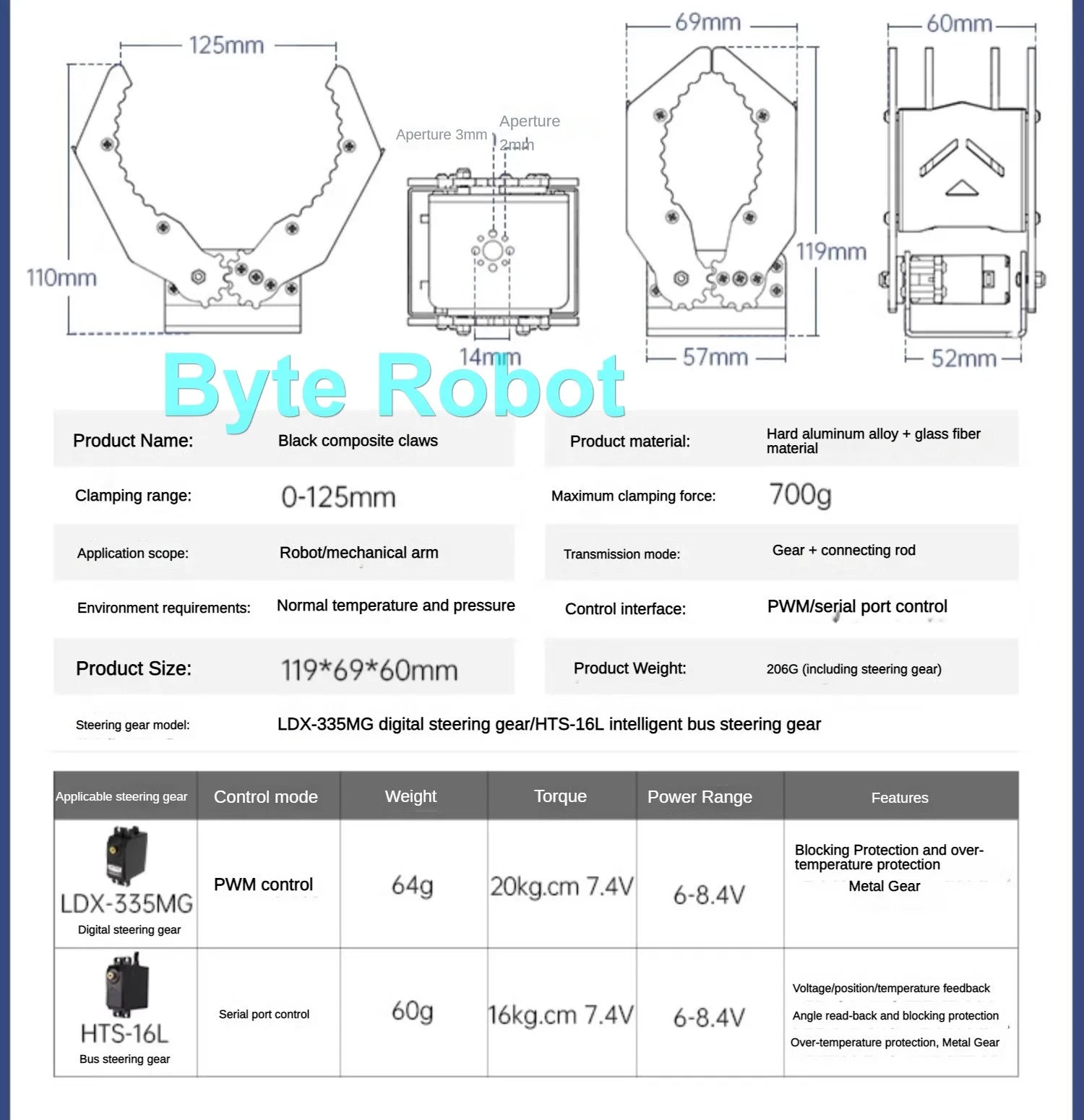

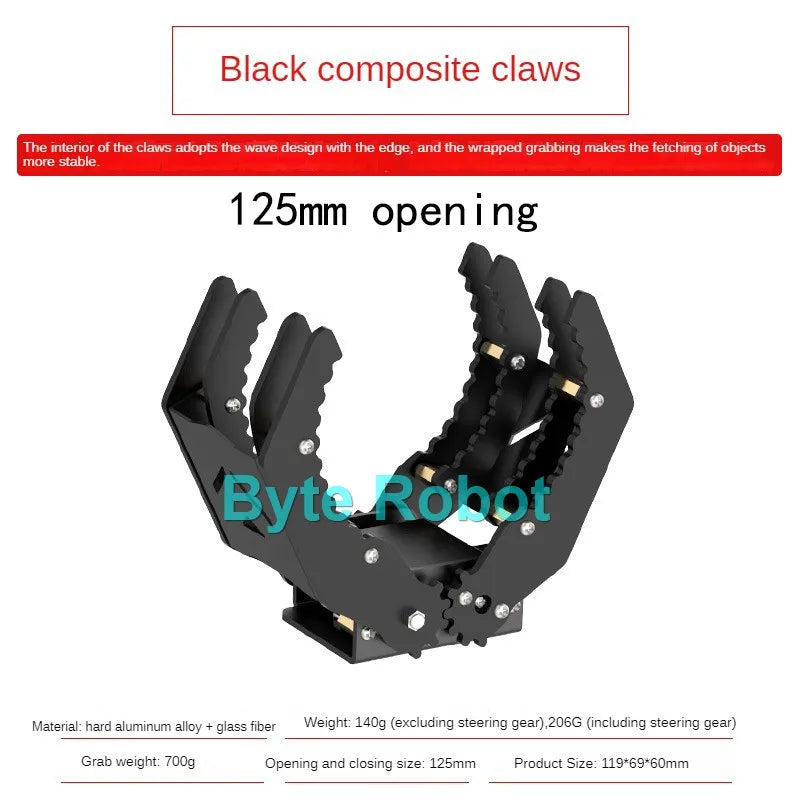

CLaw 4: Black composite claw
Clamping range :0-125mm
Application: Robot/robot arm
Operating environment requirements: normal temperature and pressure
Product size :115*57*69mm
Material: hard aluminum alloy
Maximum clamping force :500g
Transmission mode: gear + connecting rod
Control interface :PWM/ serial port control

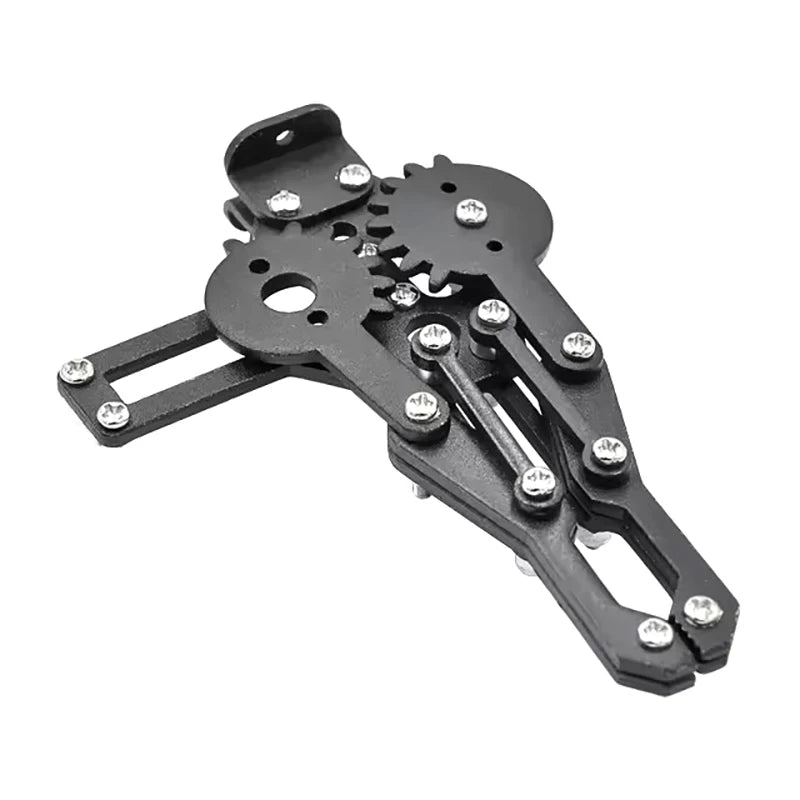

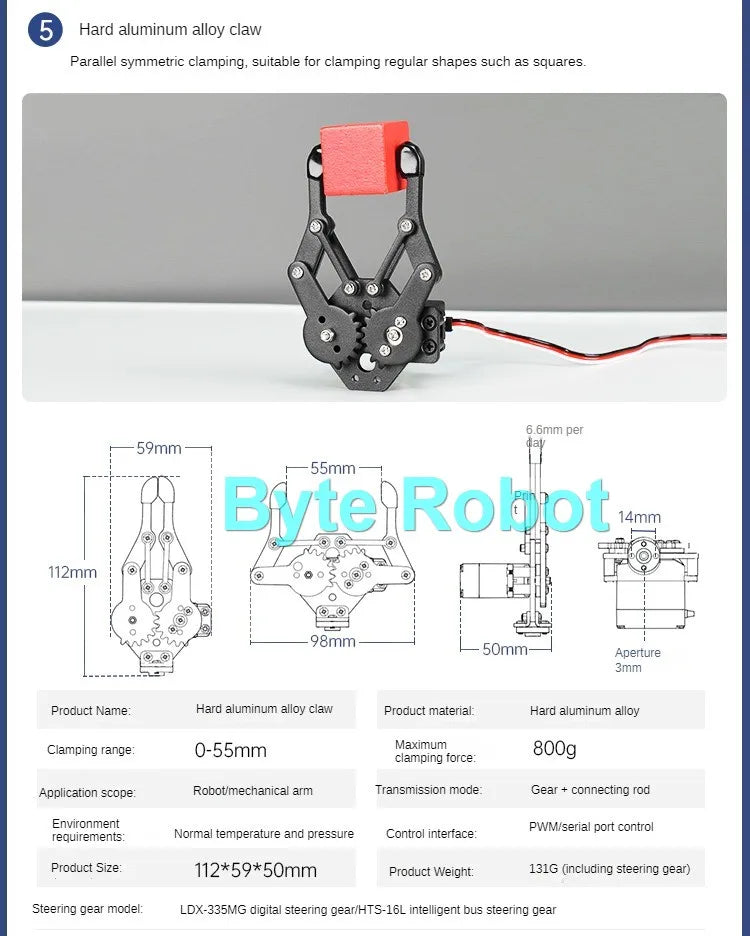

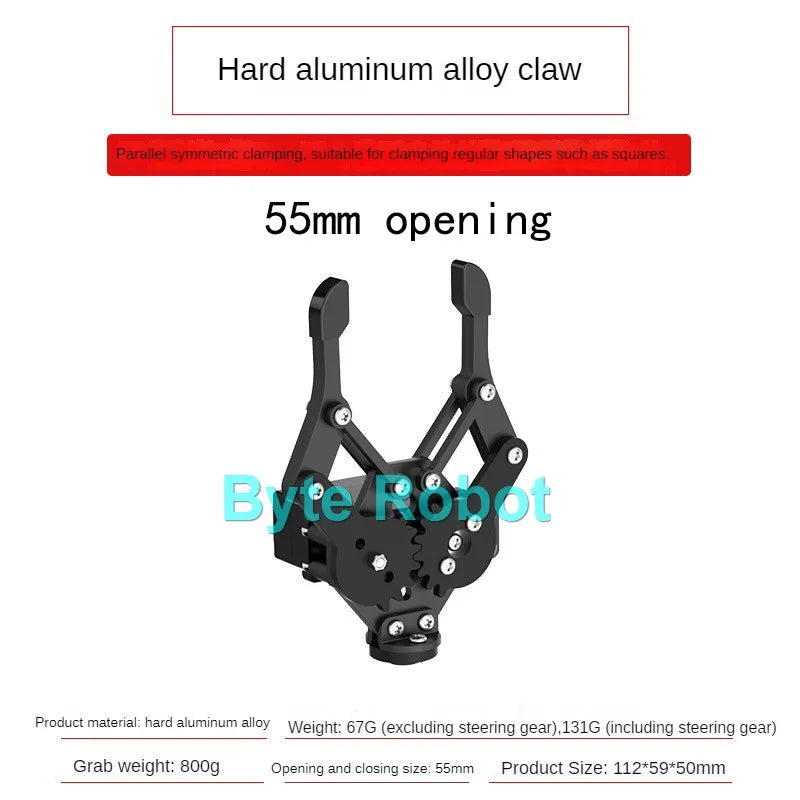

Claw 5: alumin claw
Clamping range :0-55mm
Application: Robot/robot arm
Operating environment requirements: normal temperature and pressure
Product size :112*109*50mm
Material: hard aluminum alloy
Maximum clamping force :800g
Transmission mode: gear + connecting rod
Control interface :PWM/ serial port control
Claw 6: New alumin claw
Clamping range :0-55mm
Application: Robot/robot arm
Operating environment requirements: normal temperature and pressure
Product size :112*59*50mm
Material: hard aluminum alloy
Maximum clamping force :800g
Transmission mode: gear + connecting rod
Control interface :PWM/ serial port control

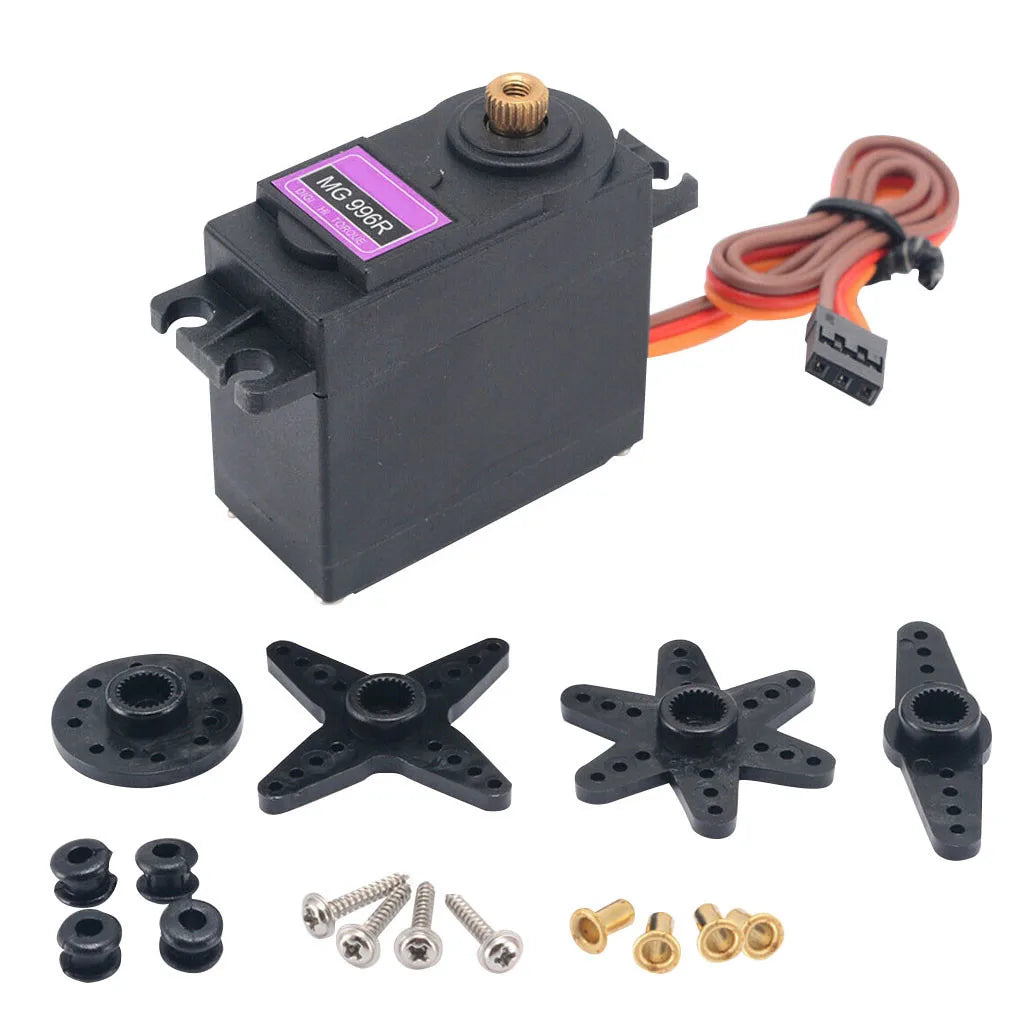

MG996 Servo Specification:
Color: Black
Material: Plastic, metal
Size: 40.7*19.7*42.9mm
Pull: 9.4kg/cm (4.8V), 11kg/cm (6V)
Reaction rate: 0.17sec/60degree(4.8v) 0.14sec/60degree(6v)
Working voltage: 4.8-7.2V
Working temperature: 0°C-55°C
Gear form: metal gear
Working dead zone: 5us (microseconds)
Power Supply: Through External Adapter

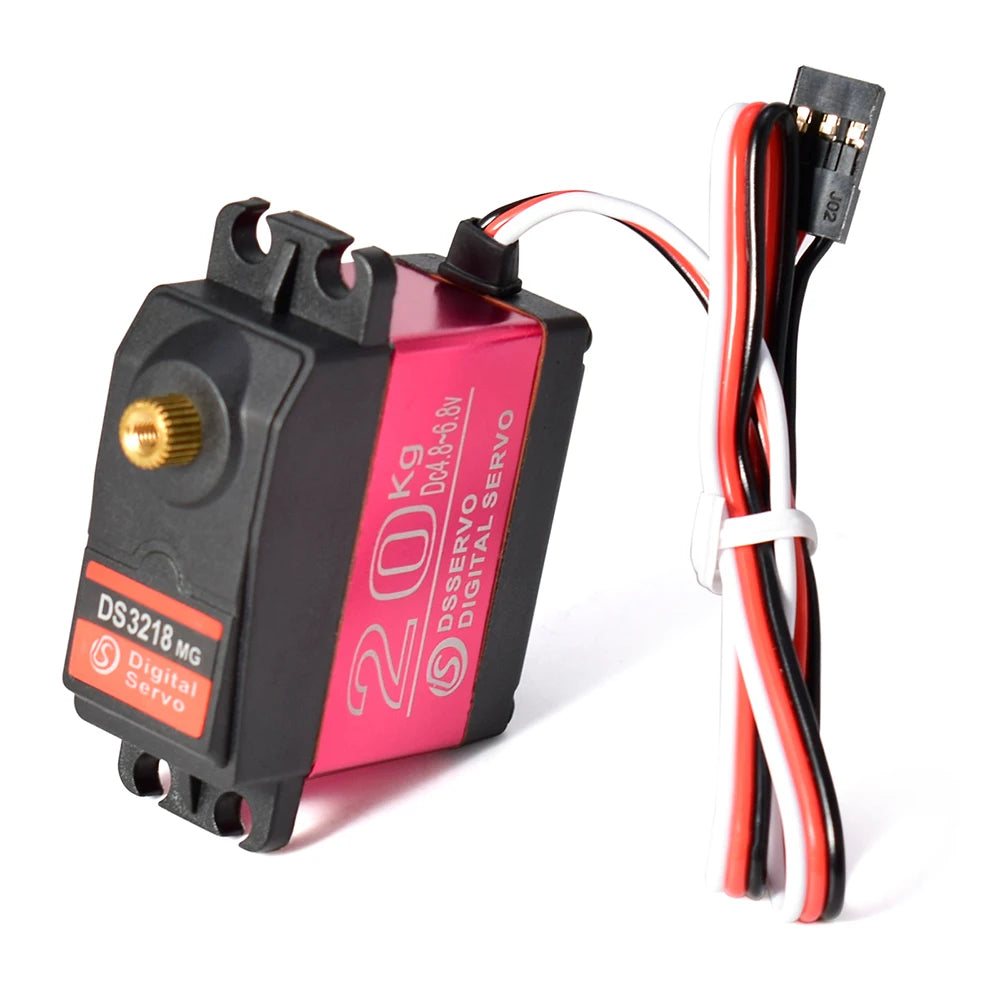

DS3218 Main parameters:
Voltage 5-6.5v
Stop-turn current: 2A
Controllable Angle optional 180 degrees, 270 degrees, 360 degrees
Drive mode: PWM
Pulse width range: 500-2500us
Control accuracy: 3us
Size: 40*20*40.5MM
Weight: 60g
Steering gear three-wire connection: red positive brown negative orange signal, or red positive black negative white signal.
Note:

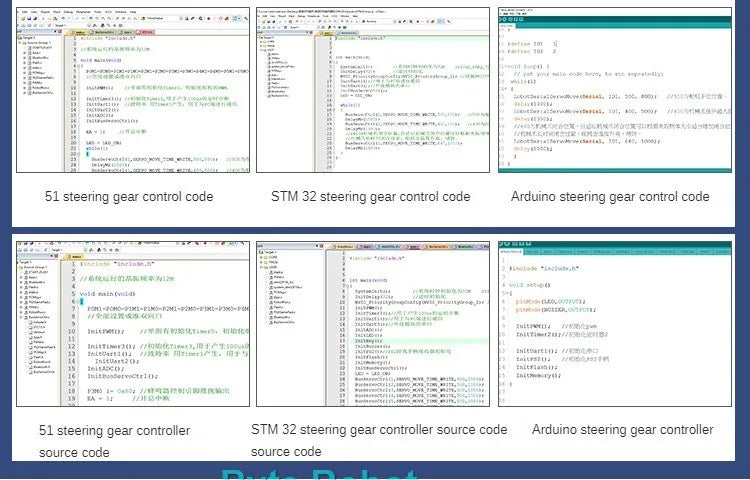

Note: This is unassembled, you need to assemble it, we provide installation tutorials and open source code for free，Please leave your email address
