6 DOF Robot Arm Industrial Robotic Arm With 20KG/25Kg Digital Servos For Raspberry For Arduino Robot DIY kIT Programmable Robot

Youfang Smart is smarter, tech, and healthier

We are the sales No.1 in the robot industry, specializing in the development of science and technology, technology, education and teaching enterprises. This programmable robotic arm is a new, very intelligent teaching programmable robotic arm designed by our institute, but also the enlightenment of children and engineers to learn education, we will release more technology, education, health new products from time to time, can be used as children's toy gifts, adult learning programmable board.I believe you will like our robot arm.

By the way, if you like our store, Please add our store to your Favorite Stores, You can get our New arrival and Discount information in time.

6 DOF Robot Arm Industrial Robotic Arm With 20KG/25Kg Digital Servos or Raspberry Pi For Arduino Robot DIY kIT Programmable Robot

Note:

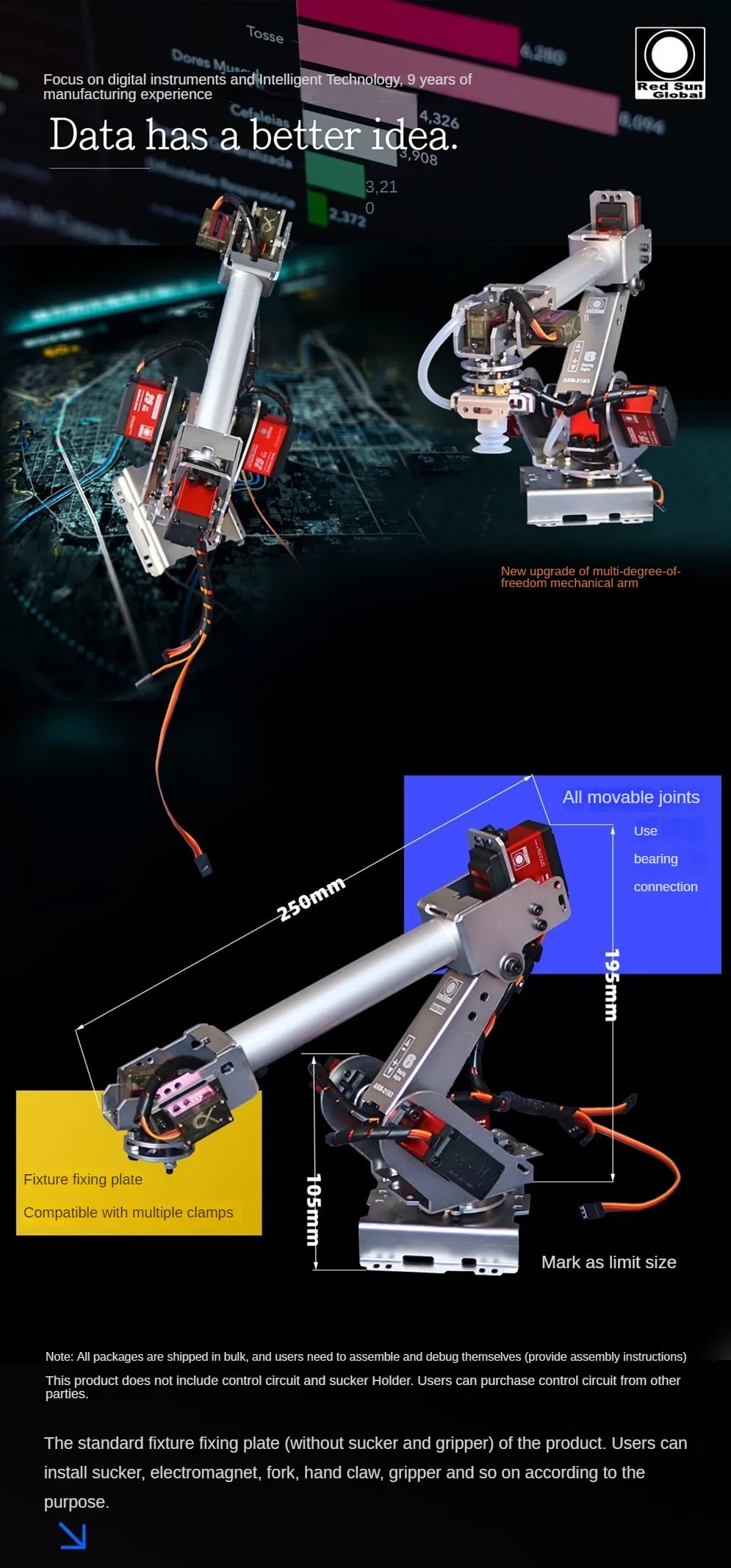

All packages are delivered in pieces, users need to assemble and debug themselves (provide assembly instructions) This product does not include the control circuit and suction clamp, users can buy other parties to control circuit products standard fixture fixing disc (without suction and clamp), users can add suction cups, electromagnets, forks, claws, grippers, etc

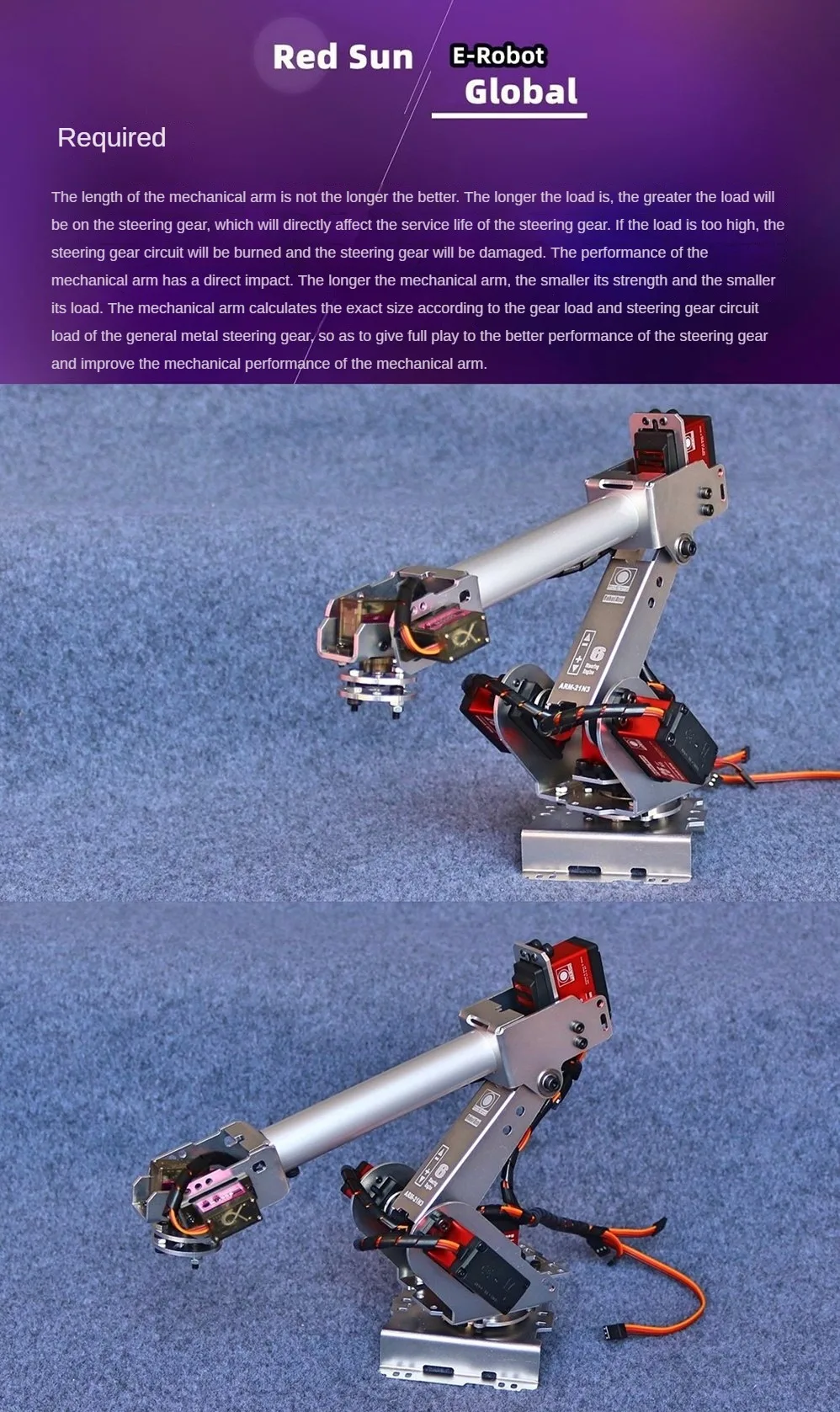

The length of the robot arm is not made longer, the better. The longer, the load on the steering gear is also large, will directly affect the life of the steering gear, the load is too large will burn the steering gear circuit, damage the steering gear. The performance of the mechanical arm has a direct impact, and the longer the mechanical arm, the smaller the force, the smaller the load. The mechanical arm is calculated to the exact size according to the gear load of the universal metal steering gear and the steering gear circuit load, so as to exert the better performance of the steering gear and improve the mechanical properties of the mechanical arm.

Only Metal Frame

Features:

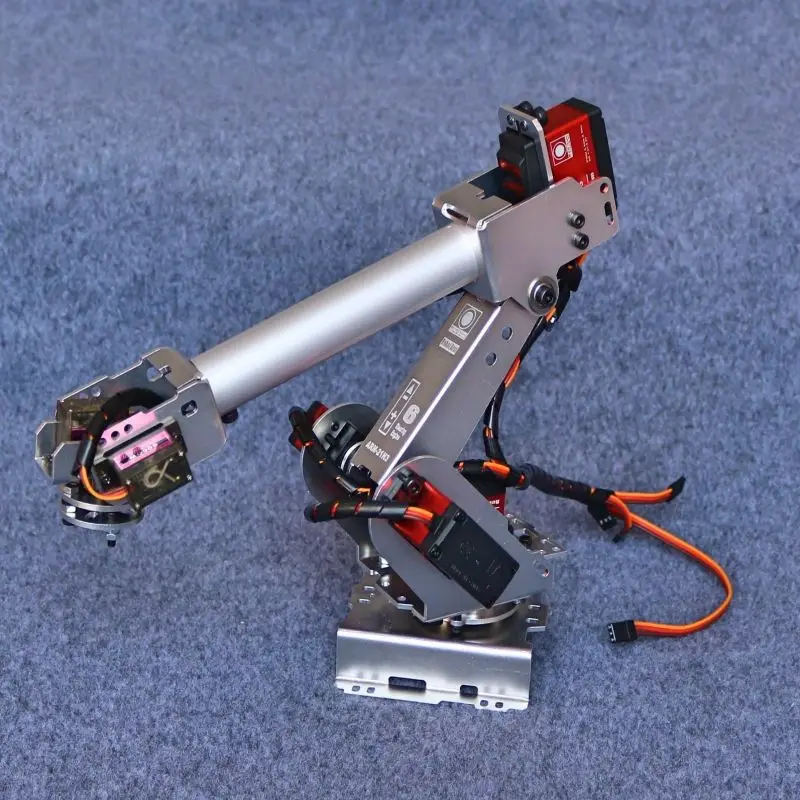

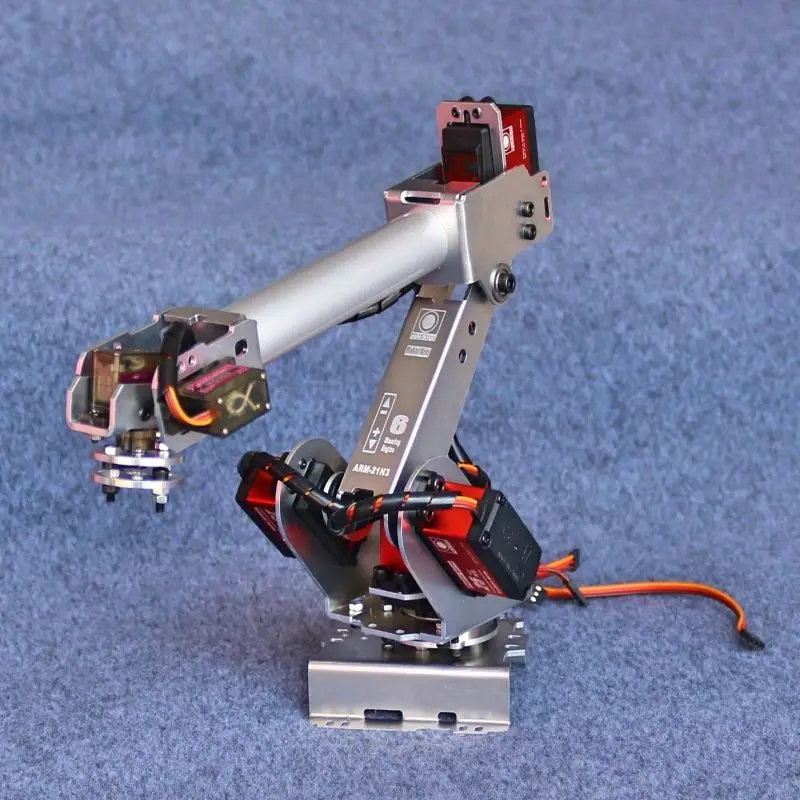

- Upgraded 6-DOF industrial robot arm
- All movable joints connected by bearings
- 9-year manufacturing experience ensures product quality

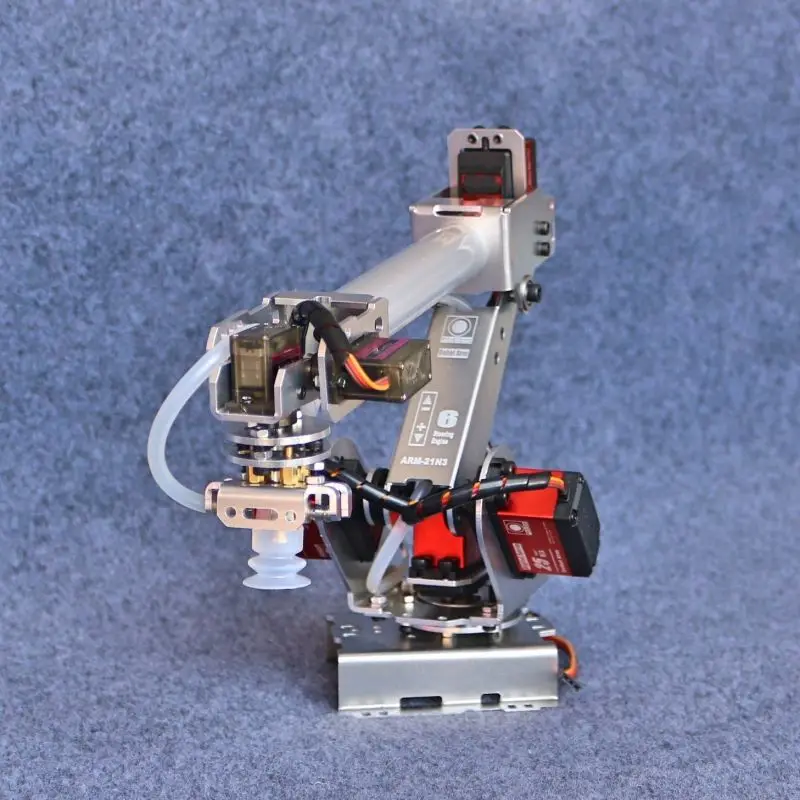

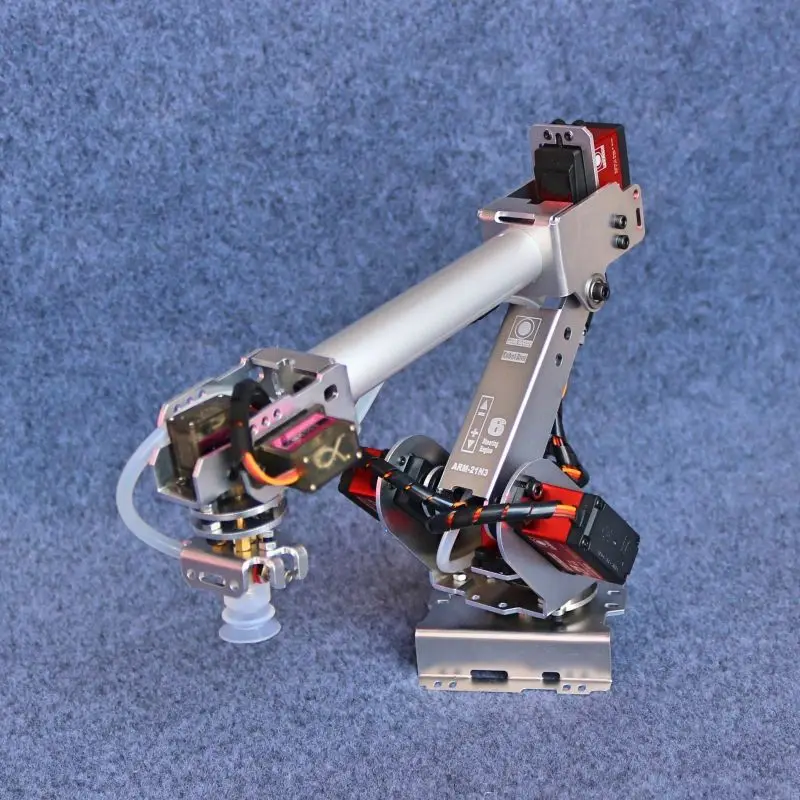

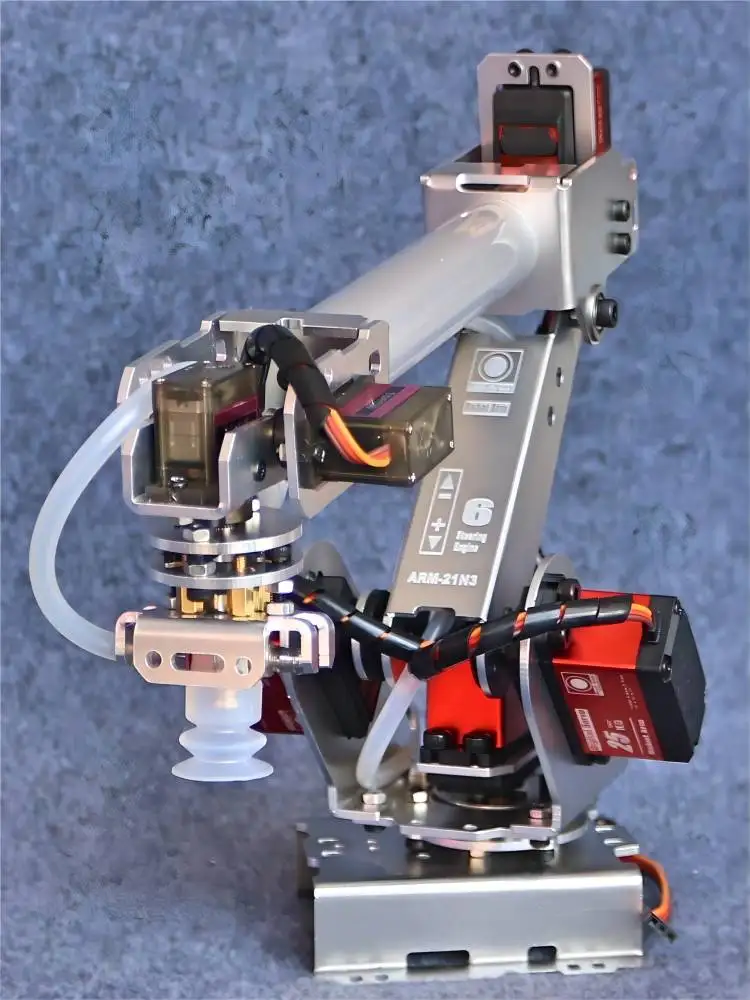

- Gripper holder fits suction cups, electromagnets, forks, craws, grippers, etc.

Package Included:
- 1 x Set of Robot Arm(Without servo)

Note:
- Assembly is needed, providing assembly instructions.
- Control circuits, suction cups and grippers are not included.
- Frame only, other items pictured or mentioned are not included, for demonstration purposes only. Thank you for your understanding!

Robot Arm with 20KG Servo

Features:
- Upgraded 6-DOF industrial robot arm
- All movable joints connected by bearings
- 9-year manufacturing experience ensures product quality
- Gripper holder fits suction cups, electromagnets, forks, craws, grippers, etc.
- Comes with 20kg digital servos

20KG Digital Servo:
- Servo board: Digital controller
- Servo size: 40 x 20.5 x 40.5mm/1.6 x 0.8 x 1.6"
- Weight: 56g±5% (0.1lb±5%)
- Working voltage: 4.8-7.2V
- Output transmission: metal gears + double bearings
- No-load speed: 0.14-0.18sec/60°
- Stall torque: 20.5kg.cm
- Pulse width: 500-2500usec
- Rotation angle: 180°
- Dead zone width: 5usec
- Midpoint position: 1500usec
- Output shaft: 25T
- Output shaft hole: M3
- Idling current: 210-260mA
- Blocking current: 2100-2700mA
- Waterproof level: preliminary
- Shell: aluminum alloy + plastic

Package Included:

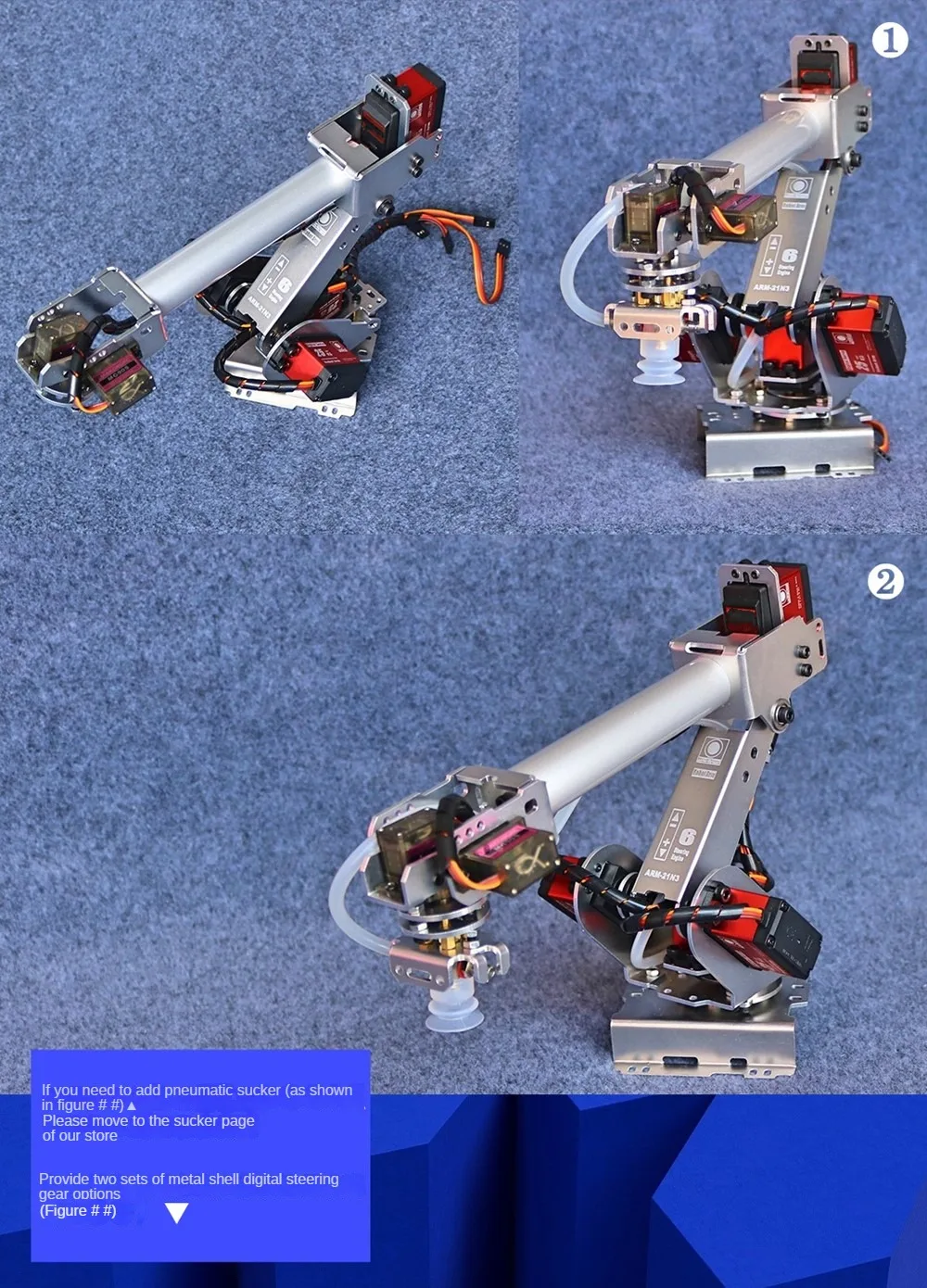

- 1 x Set of Robot Arm(With 4pcs 20kg servo and 2pcd MG90S) + 1 suction cup(Free gift)

Robot Arm with 25KG Servo

Features:
- Upgraded 6-DOF industrial robot arm
- All movable joints connected by bearings
- 9-year manufacturing experience ensures product quality
- Gripper holder fits suction cups, electromagnets, forks, craws, grippers, etc.
- Comes with 25kg digital servos

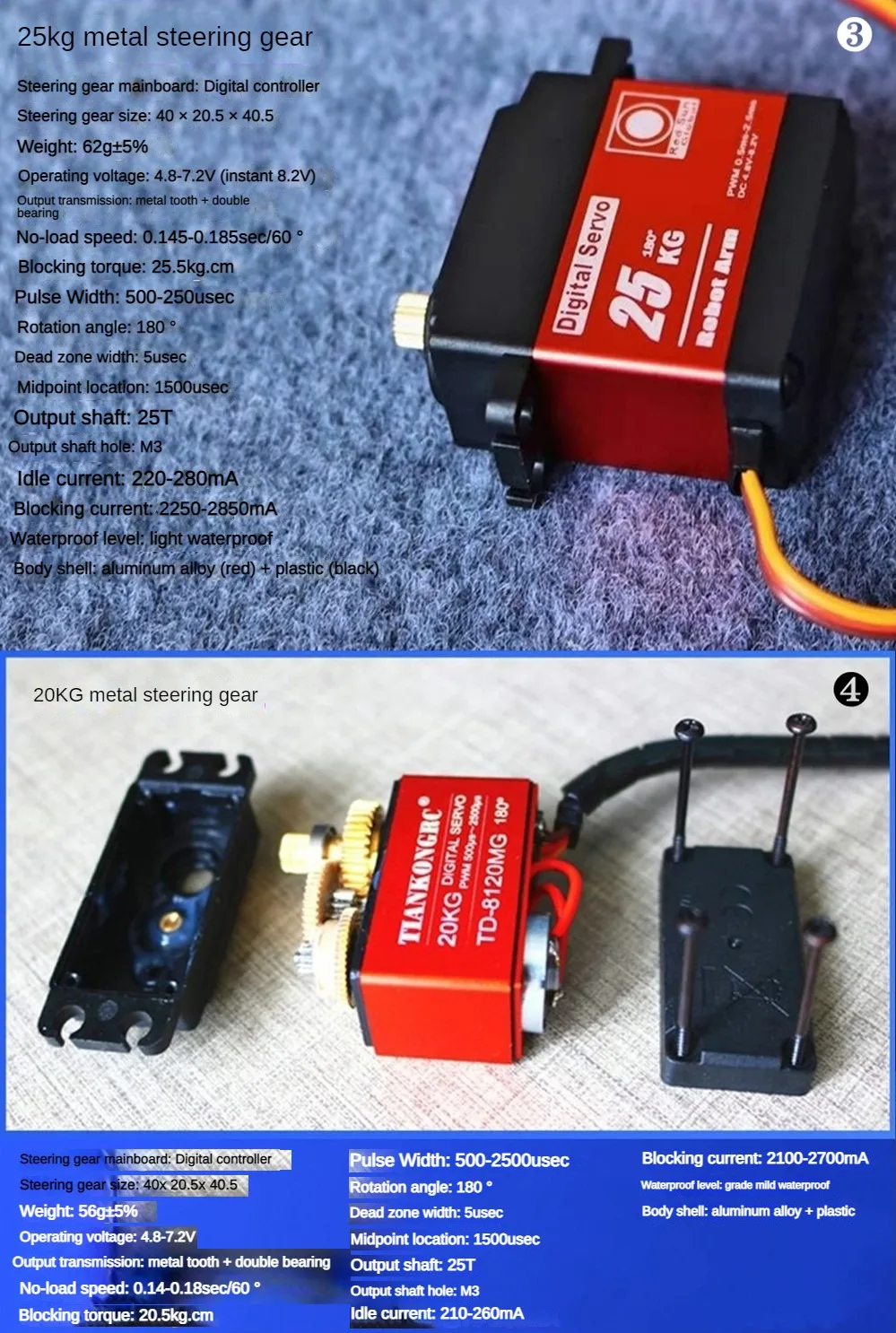

25KG Servo:
- Servo board: Digital controller
- Servo Dimensions: 40 x 20.5 x 40.5mm/1.6 x 0.8 x 1.6"
- Weight: 62g±5% (0.1lb±5%)
- Working voltage: 4.8-7.2V (instant 8.2V)
- Output transmission: metal gears + double bearings
- No-load speed: 0.145-0.185sec/60°
- Stall torque: 25.5kg.cm
- Pulse width: 500-2500usec
- Rotation angle: 180°
- Dead zone width: 5usec
- Midpoint position: 1500usec
- Output shaft: 25T
- Output shaft hole: M3
- Idling current: 220-280mA
- Blocking current: 2250-2850mA
- Waterproof level: preliminary
- Shell: aluminum alloy (in red) + plastic (in black)

Package Included:
- 1 x Set of Robot Arm(With 4pcs 25kg servo and 2pcd MG90S)+ 1 suction cup(Free gift)

Note:
- Assembly is needed, providing assembly instructions.
- Control circuits, suction cups, grippers and other accessories mentioned above are not included.
